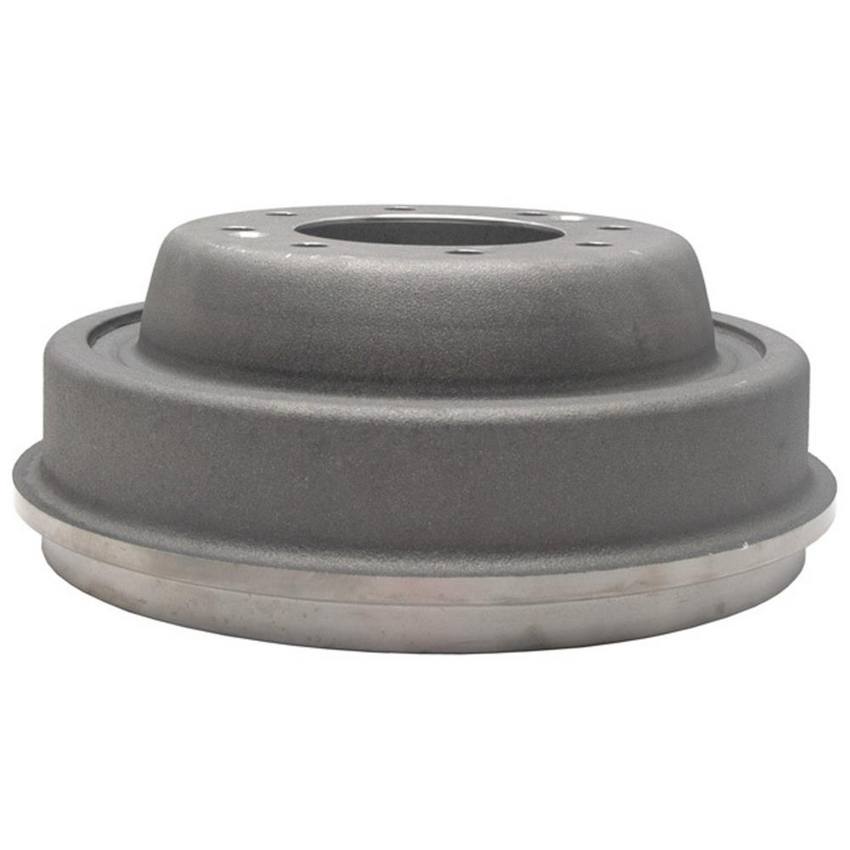

Brake Drum
| Year | Make | Model | Submodel | Engine | Fuel Type | Position | Note |
|---|---|---|---|---|---|---|---|
| 1988 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | | 4WD; |
| 1987 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | | 4WD; |
| 1986 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | | 4WD; |
| 1985 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | | 4WD; |
| 1984 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | | 4WD; |
| 1983 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | | 4WD; |
| 1982 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | | 4WD; |
| 1981 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | | 4WD; |
| 1980 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | | 4WD; |
| 1979 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | | 4WD; |
| 1978 | Jeep | J20 | Base | 6.6V8 | GAS | Rear | | 4WD; |
| 1978 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | | 4WD; |
| 1977 | Jeep | J20 | Base | 6.6V8 | GAS | Front | | 4WD; |
| 1977 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | | 4WD; |
| 1977 | Jeep | J20 | Base | 6.6V8 | GAS | Rear | | 4WD; |
| 1977 | Jeep | J20 | Base | 5.9V8 | GAS | Front | | 4WD; |
| 1976 | Jeep | J20 | Base | 4.2L6 | GAS | Front | | 4WD; |
| 1976 | Jeep | J20 | Base | 6.6V8 | GAS | Rear | | 4WD; |
| 1976 | Jeep | J20 | Base | 6.6V8 | GAS | Front | | 4WD; |
| 1976 | Jeep | J20 | Base | 5.9V8 | GAS | Front | | 4WD; |
| 1976 | Jeep | J20 | Base | 4.2L6 | GAS | Rear | | 4WD; |
| 1976 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | | 4WD; |
| 1975 | Jeep | J10 | Base | 4.2L6 | GAS | Rear | with 12in Brakes | 4WD; |
| 1975 | Jeep | J10 | Base | 6.6V8 | GAS | Rear | with 12in Brakes | 4WD; |
| 1975 | Jeep | J10 | Base | 5.9V8 | GAS | Rear | with 12in Brakes | 4WD; |
| 1975 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | with 12in Diameter Drums | 4WD; |
| 1975 | Jeep | J20 | Base | 6.6V8 | GAS | Rear | with 12in Diameter Drums | 4WD; |
| 1974 | Jeep | J10 | Base | 4.2L6 | GAS | Rear | with 12in Brakes | 4WD; |
| 1974 | Jeep | J10 | Base | 6.6V8 | GAS | Rear | with 12in Brakes | 4WD; |
| 1974 | Jeep | J10 | Base | 5.9V8 | GAS | Rear | with 12in Brakes | 4WD; |
| 1974 | Jeep | J10 | Base | 4.2L6 | GAS | Rear | with 12in Brakes | 4WD; |
| 1974 | Jeep | J20 | Base | 4.2L6 | GAS | Rear | with 12in Diameter Drums | 4WD; |
| 1974 | Jeep | J20 | Base | 5.9V8 | GAS | Rear | with 12in Diameter Drums | 4WD; |
| 1974 | Jeep | J20 | Base | 4.2L6 | GAS | Rear | with 12in Diameter Drums | 4WD; |
| 1974 | Jeep | J20 | Base | 6.6V8 | GAS | Rear | with 12in Diameter Drums | 4WD; |
| 1972 | Chevrolet | C20 Pickup | Base | 4.1L6 | GAS | Rear | Dana Axle | RWD; |
| 1972 | Chevrolet | C20 Pickup | Base | 5.7V8 | GAS | Rear | Dana Axle | RWD; |
| 1972 | Chevrolet | C20 Pickup | Base | 5.7V8 | LPG | Rear | Dana Axle | RWD; |
| 1972 | Chevrolet | C20 Pickup | Base | 4.8L6 | GAS | Rear | Dana Axle | RWD; |
| 1972 | Chevrolet | C20 Pickup | Base | 6.6V8 | GAS | Rear | Dana Axle | RWD; |
| 1972 | Chevrolet | C20 Pickup | Base | 4.1L6 | GAS | Rear | Dana Axle | RWD; |
| 1972 | Chevrolet | C20 Pickup | Base | 5.0V8 | GAS | Rear | Dana Axle | RWD; |
| 1972 | Chevrolet | C20 Suburban | Base | 6.6V8 | GAS | Rear | Dana Axle | RWD; |
| 1972 | Chevrolet | C20 Suburban | Base | 4.1L6 | GAS | Rear | Dana Axle | RWD; |
| 1972 | Chevrolet | C20 Suburban | Base | 5.7V8 | GAS | Rear | Dana Axle | RWD; |
| 1972 | Chevrolet | C20 Suburban | Base | 4.1L6 | GAS | Rear | Dana Axle | RWD; |
| 1972 | Chevrolet | C20 Suburban | Base | 5.0V8 | GAS | Rear | Dana Axle | RWD; |
| 1972 | Chevrolet | C20 Suburban | Base | 4.8L6 | GAS | Rear | Dana Axle | RWD; |
| 1972 | GMC | C25/C2500 Pickup | Base | 4.1L6 | GAS | Rear | Dana Axle | RWD; |
| 1972 | GMC | C25/C2500 Pickup | Base | 5.7V8 | LPG | Rear | Dana Axle | RWD; |
| 1972 | GMC | C25/C2500 Pickup | Base | 5.0V8 | GAS | Rear | Dana Axle | RWD; |
| 1972 | GMC | C25/C2500 Pickup | Base | 4.1L6 | GAS | Rear | Dana Axle | RWD; |
| 1972 | GMC | C25/C2500 Pickup | Base | 5.7V8 | GAS | Rear | Dana Axle | RWD; |
| 1972 | GMC | C25/C2500 Pickup | Base | 4.8L6 | GAS | Rear | Dana Axle | RWD; |
| 1972 | GMC | C25/C2500 Pickup | Base | 6.6V8 | GAS | Rear | Dana Axle | RWD; |
| 1972 | GMC | C25/C2500 Suburban | Base | 4.1L6 | GAS | Rear | Dana Axle | RWD; |
| 1972 | GMC | C25/C2500 Suburban | Base | 6.6V8 | GAS | Rear | Dana Axle | RWD; |
| 1972 | GMC | C25/C2500 Suburban | Base | 5.7V8 | LPG | Rear | Dana Axle | RWD; |
| 1972 | GMC | C25/C2500 Suburban | Base | 4.1L6 | GAS | Rear | Dana Axle | RWD; |
| 1972 | GMC | C25/C2500 Suburban | Base | 5.7V8 | GAS | Rear | Dana Axle | RWD; |
| 1972 | GMC | C25/C2500 Suburban | Base | 5.0V8 | GAS | Rear | Dana Axle | RWD; |
| 1972 | GMC | C25/C2500 Suburban | Base | 4.8L6 | GAS | Rear | Dana Axle | RWD; |
| 1971 | Chevrolet | C20 Pickup | Base | 6.6V8 | GAS | Rear | Dana Axle | RWD; |
| 1971 | Chevrolet | C20 Pickup | Base | 5.7V8 | LPG | Rear | Dana Axle | RWD; |
| 1971 | Chevrolet | C20 Pickup | Base | 4.1L6 | GAS | Rear | Dana Axle | RWD; |
| 1971 | Chevrolet | C20 Pickup | Base | 4.8L6 | GAS | Rear | Dana Axle | RWD; |
| 1971 | Chevrolet | C20 Pickup | Base | 5.0V8 | GAS | Rear | Dana Axle | RWD; |
| 1971 | Chevrolet | C20 Pickup | Base | 5.7V8 | GAS | Rear | Dana Axle | RWD; |
| 1971 | Chevrolet | C20 Suburban | Base | 5.7V8 | LPG | Rear | Dana Axle | RWD; |
| 1971 | Chevrolet | C20 Suburban | Base | 4.8L6 | GAS | Rear | Dana Axle | RWD; |
| 1971 | Chevrolet | C20 Suburban | Base | 6.6V8 | GAS | Rear | Dana Axle | RWD; |
| 1971 | Chevrolet | C20 Suburban | Base | 5.7V8 | GAS | Rear | Dana Axle | RWD; |
| 1971 | Chevrolet | C20 Suburban | Base | 4.1L6 | GAS | Rear | Dana Axle | RWD; |
| 1971 | Chevrolet | C20 Suburban | Base | 5.0V8 | GAS | Rear | Dana Axle | RWD; |
| 1971 | GMC | C25/C2500 Pickup | Base | 5.0V8 | GAS | Rear | Dana Axle | RWD; |
| 1971 | GMC | C25/C2500 Pickup | Base | 6.6V8 | GAS | Rear | Dana Axle | RWD; |
| 1971 | GMC | C25/C2500 Pickup | Base | 5.7V8 | GAS | Rear | Dana Axle | RWD; |
| 1971 | GMC | C25/C2500 Pickup | Base | 5.7V8 | LPG | Rear | Dana Axle | RWD; |
| 1971 | GMC | C25/C2500 Pickup | Base | 4.8L6 | GAS | Rear | Dana Axle | RWD; |
| 1971 | GMC | C25/C2500 Pickup | Base | 4.1L6 | GAS | Rear | Dana Axle | RWD; |
| 1971 | GMC | C25/C2500 Suburban | Base | 5.7V8 | GAS | Rear | Dana Axle | RWD; |
| 1971 | GMC | C25/C2500 Suburban | Base | 5.7V8 | LPG | Rear | Dana Axle | RWD; |
| 1971 | GMC | C25/C2500 Suburban | Base | 6.6V8 | GAS | Rear | Dana Axle | RWD; |
| 1971 | GMC | C25/C2500 Suburban | Base | 5.0V8 | GAS | Rear | Dana Axle | RWD; |
| 1971 | GMC | C25/C2500 Suburban | Base | 4.1L6 | GAS | Rear | Dana Axle | RWD; |
| 1971 | GMC | C25/C2500 Suburban | Base | 4.8L6 | GAS | Rear | Dana Axle | RWD; |
When it comes to top-notch auto parts, one brand that stands tall is ACDelco. Popular for its commitment to quality and innovation, ACDelco has been a trusted name in the automotive industry. At Newparts.com, we're proud to offer a wide selection of ACDelco auto parts, including ACDelco spark plugs, ACDelco alternators, and ACDelco air filters, and other ACDelco parts, all at discounted prices.
ACDelco spark plugs are engineered to deliver exceptional performance and reliability, ensuring optimal engine operation and fuel efficiency. Whether you're cruising down the highway or navigating city streets, you can trust ACDelco spark plugs to keep your engine firing on all cylinders.
When it comes to power generation, ACDelco alternators are second to none. Designed to withstand the challenges of daily driving, ACDelco alternators deliver consistent power output to keep your vehicle's electrical systems running smoothly. With ACDelco alternators from Newparts.com, you can count on reliable performance mile after mile.
In addition to spark plugs and alternators, we also offer a range of ACDelco air filters to help keep your engine breathing clean, fresh air. ACDelco air filters are designed to trap dirt, dust, and other contaminants, preventing them from entering your engine and causing damage. With a high-quality ACDelco air filter from Newparts.com, you can enjoy improved engine performance and extended engine life.
At Newparts.com, we understand that getting the right parts quickly is essential. That's why we offer fast shipping on all ACDelco auto parts, so you can get back on the road with confidence. Plus, with our discounted prices, you can save big on the parts you need to keep your vehicle running smoothly. In case you want to purchase parts by phone, feel free to call us at 855-505-2886 and our customer service team will help you out.
Whether you're in need of spark plugs, alternators, air filters, or any other ACDelco auto parts, Newparts.com has you covered. Shop our selection today and experience the quality and reliability of ACDelco for yourself.
| ABS Tone Ring Included | No |
| Bolt Circle Diameter (in) | 6.5 |
| Bolt Circle Diameter (mm) | 165.1 |
| Bolt Hole Quantity | 8 |
| Brake Surface Finish | Turned |
| Center Bore Diameter (in) | 4.6in |
| Center Bore Diameter (mm) | 116.8mm |
| Depth | 2.91 |
| Depth | 73.9 |
| Discard Thickness (in) | 12.06 |
| Discard Thickness (mm) | 306.3 |
| FAQ - Answer 1 | No, but it is a good idea to inspect them for wear-out, cracking, leaking etc. |
| FAQ - Answer 2 | Yes, ACDelco also offers GM OE and Advantage brake drums. |
| FAQ - Answer 3 | No, but it is a good idea to inspect them at every tire rotation. |
| FAQ - Question 1 | Do I have to replace all my brake parts when replacing my brake drums? |
| FAQ - Question 2 | Does ACDelco offer other grades of brake drums? |
| FAQ - Question 3 | Do I have to replace my brake drums after a certain amount of time? |
| Features & Benefits - Bullet 1 | Inspected for balance; resulting in smooth brake operation and noise reduction |
| Features & Benefits - Bullet 2 | Independently tested with Noise/Vibration/Harshness (NVH) and durability/wear testing; resulting in high quality and reliable products |
| Features & Benefits - Bullet 3 | Follows original manufacturers' designs for dispersing heat, helping to prolong pad and rotor life while reducing noise and vibration |
| Good Maintenance Practices - Section 1 - Bullet 1 | Check brake fluid level at every oil change. Replace fluid according to owner's manual recommendations. |
| Good Maintenance Practices - Section 1 - Bullet 2 | Calipers and wheel cylinders should be checked every brake inspection and serviced or replaced as required. |
| Good Maintenance Practices - Section 1 - Bullet 3 | Inspect the brake lines for rust, punctures, or visible leaks (You may be able to do this, but consult a qualified technician if necessary). |
| Good Maintenance Practices - Section 1 - Bullet 4 | Check the thickness of your brake pads. |
| Good Maintenance Practices - Section 1 - Header | The following inspections and maintenance procedures can help prevent potential brake problems: |
| Good Maintenance Practices - Section 2 - Bullet 1 | Inspection of the brake hoses for brittleness or cracking. |
| Good Maintenance Practices - Section 2 - Bullet 2 | Inspection of brake lining and pads for wear or contamination by brake fluid or grease. |
| Good Maintenance Practices - Section 2 - Bullet 3 | Inspection of wheel bearings and grease seals. |
| Good Maintenance Practices - Section 2 - Bullet 4 | Parking brake adjustments (as needed). |
| Good Maintenance Practices - Section 2 - Header | The following should be conducted by a qualified technician: |
| Grade Type | Regular |
| Height (in) | 4 |
| Length (in) | 12.06 |
| Material | Cast Iron |
| Maximum Brake Diameter (Discard) | 306.32 |
| Mount Hole Diameter (in) | 0.614in |
| Mount Hole Diameter (mm) | 15.596mm |
| Nominal Drum Diameter | 0.475 |
| Nominal Drum Diameter | 12.05 |
| Outer Cooling Fins | No |
| Outside Diameter | 0.551 |
| Outside Diameter | 14 |
| Product Description | ACDelco Professional Brake Drums are constructed with G3000 SAE qualified material for structural integrity and maximum service life. They are tested to ISO/TS 16949 quality system standards and validated for balance to provide better braking performance. Chamfer angle, vane configuration, and plate thickness all follow the OE design, making them a premium aftermarket replacement for your GM and non-GM vehicle. Also, no machining is required. ACDelco Professional Brake Drums are ready to be installed right out of the box. ⚠ |
| Programming Required | No |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 1 | Squealing or scraping noises. |
| Signs of Wear & Troubleshooting - Section 1 - Bullet 2 | Brake pedal pulsation (not to be confused with normal ABS operation). |
| Stud/Lug Hole Diameter | 0.606 |
| Stud/Lug Hole Diameter | 15.4 |
| Stud/Lug Hole Quantity | 8 |
| Weight | 25.1 |
| Width (in) | 14.6 |
